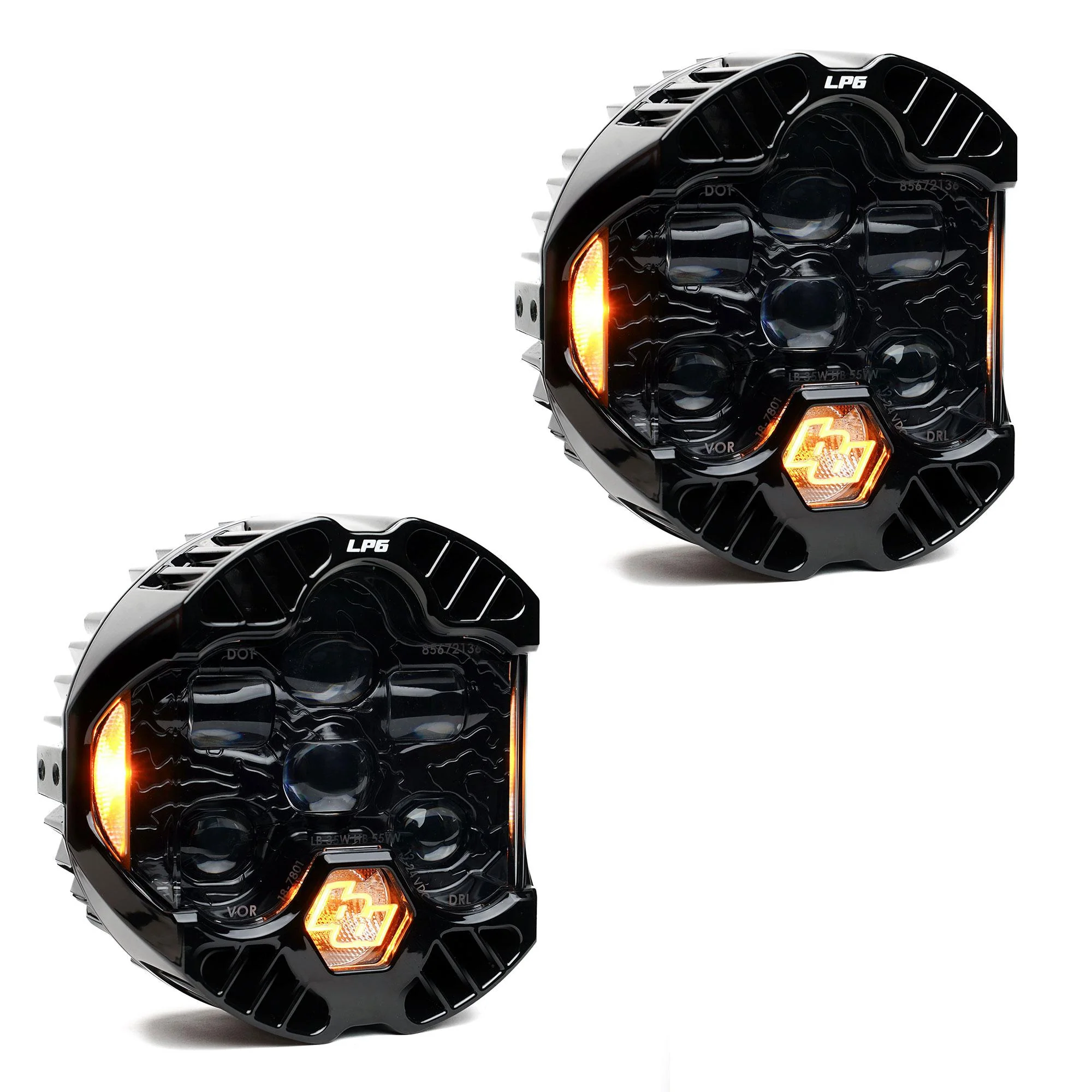

Baja Designs Universal Dot LP6 LED Headlight - Pair
Baja Designs Universal Dot LP6 LED Headlight - Pair
Upgrade your ride with the Baja Designs DOT LP6 pair, our first-ever road-legal LED headlight replacement. Built on the foundation of the race-proven LP6 Pro off-road light, the DOT LP6 is engineered for on-road use and fully compliant with FMVSS 108 standards for both automotive and motorcycle applications. This premium LED headlight offers integrated high and low beam functions, delivering exceptional performance and reliability on any road. Choose between white or amber daytime running lights to customize your vehicle’s look. With universal and vehicle-specific mounting options, the DOT LP6 provides a perfect fit for your setup. Backed by Baja Designs’ 30-Day Satisfaction Guarantee and Lifetime Limited Warranty, the DOT LP6 is the ultimate combination of rugged durability, style, and DOT road-legal usability.
Features:
- Low and High Beam functionality
- Daytime running lights for daytime safety
- Low beam 3480 raw lumens | 42,568.7 candela
- High beam 5280 raw lumens | 62,611.5 candela
- High beam: 40w / 2.8A
- Low beam: 26w / 1.8A
-
DRL: 5w / 0.4A
Specifications:
| Voltage: | 10.5 to 32V |
| Description: | DRL Color: Clear; DRL: 5W; Candela: 42,568 (Low) 62,611 (High) |
| Wattage (W): | Single Lamp at 13.8V; 26W (L) 40W (H) |
| Brightness (Lumens): | 3,480 (Low) 5,280 (High) |
| Beam Pattern: | Low Beam: 10Lux out to 50meters (Standard Spec for DOT Headlights) |
| Wiring Harness Included: | No |
| Amperage Rating (A): | 1.8A (L) 2.8A (H) |
| Depth (in.) | 3.2 |
| Height (in.) | 6.5 |
| Length (in.) | 6.5 |
Kit Includes:
- (2x) DOT LP6 – White or Amber DRL
- Mounting hardware
Note:
- This light does not come with a wiring harness or mounting brackets.
- You will need to purchase separately the appropriate vehicle harness
Installation Instructions:
- Baja Designs 18-7801 Installation Sheet
- Baja Designs 18-7802 Installation Sheet
- Video Instruction
