HCR Suspension '17-'21 Can-Am Maverick X3 64" Dual Sport Suspension Kit



To take the already impressive X3 one step further, HCR has developed an American—made product to look, feel, and function better than the factory suspension. The HCR X3 suspension kit is designed as an OEM replacement kit for the 64" X DS models. The HCR signature high-clearance A-arm and trailing arm design increases ground clearance 1.5 inches under key suspension components. Approach angles have been improved for reduced surface contact and friction.



Features:

• Easy 100% bolt-on, no cut, no drill installation

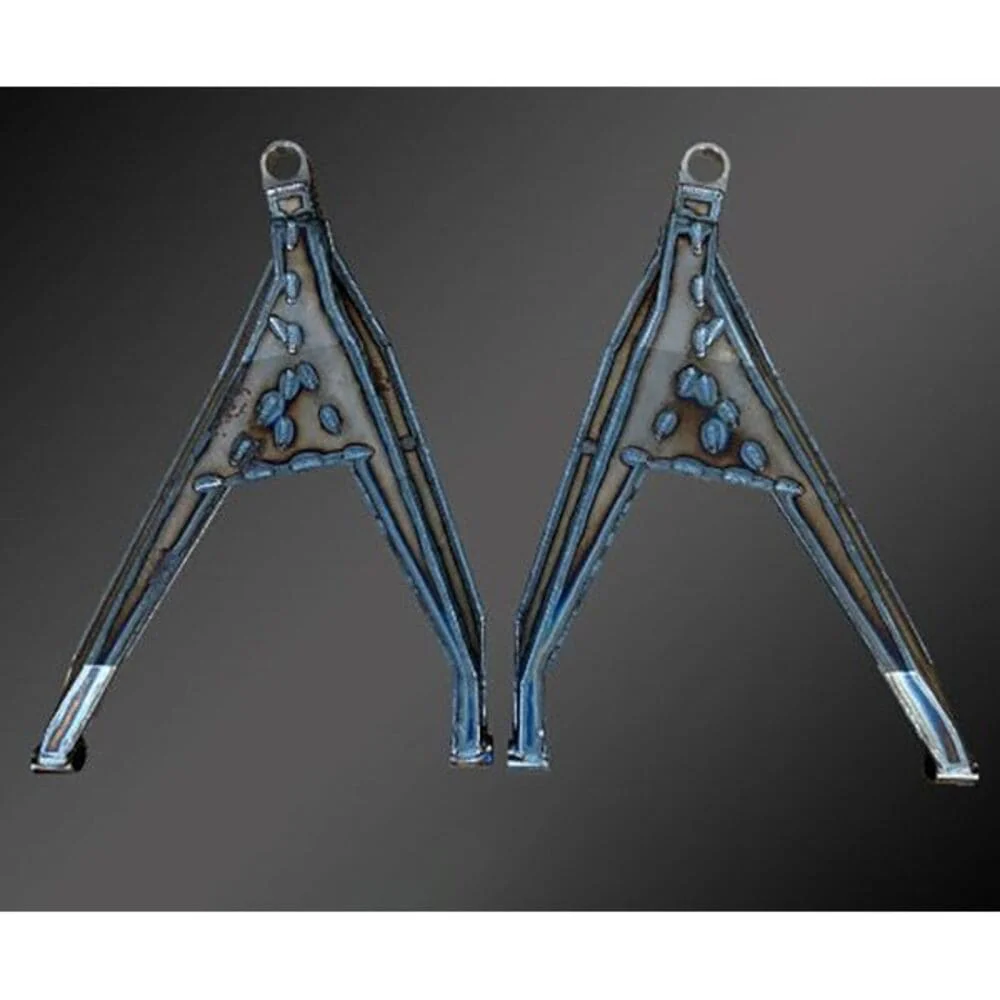

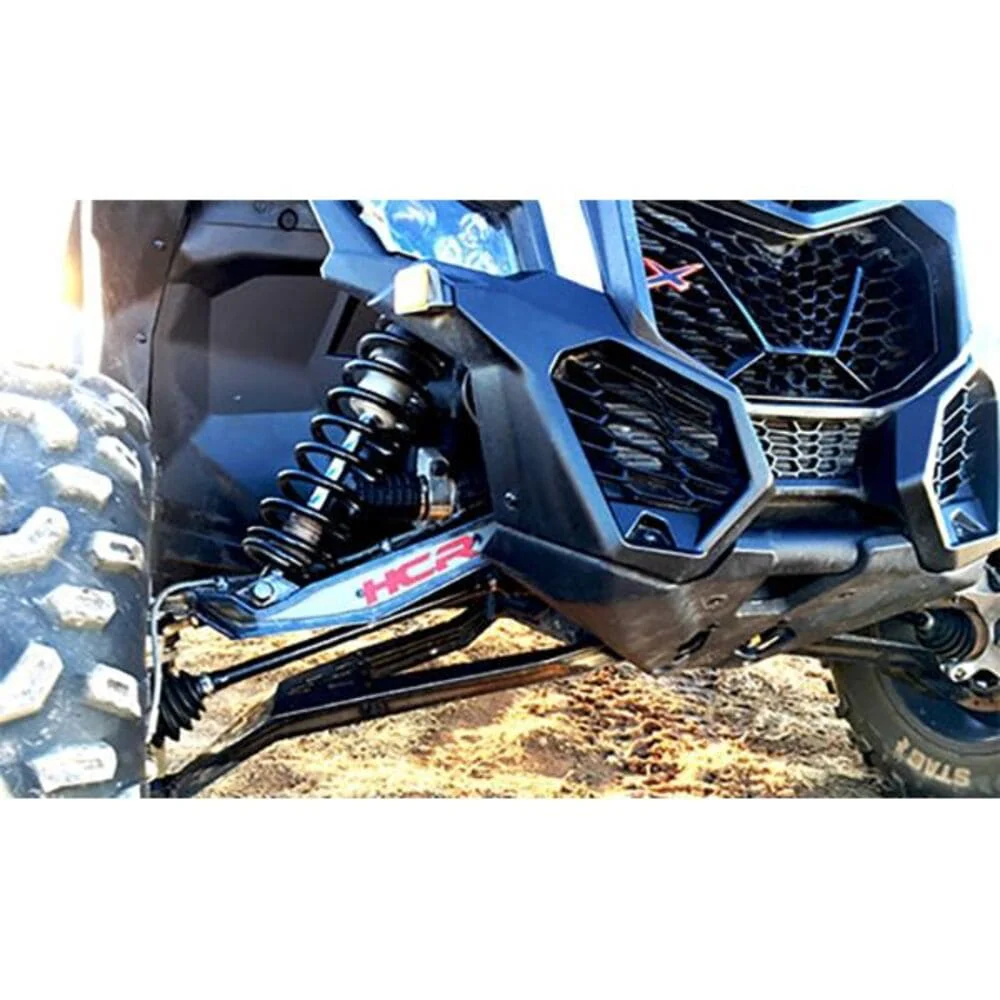

• High-clearance A-arms and trailing arms
• Made out of HCR proprietary alloy—30% stronger than chromoly steel.
• Proudly made in the USA



Kit Includes:

• (4) Front A-arms (2 upper, 2 lower)
• (2) Rear trailing arms
• Delrin bushings for replacement in the front A-arms
• Brake lines
• Mounting hardware
• Shock bolts

• Replacement bushings



Note:

• Not compatible with Smart-Shox
• Will not fit double shear hubs
• Does not come with trailing arm radial bearings (Replace with Can-Am OEM hardware)
• 14" wheels will not fit
• HCR kits are made to order. Quality takes time



Fitment:

• 64" Models

• Can-Am Maverick X3 900 : 2018

• Can-Am Maverick X3 Turbo DS (standard) : 2017-21

• Can-Am Maverick X3 Turbo R DS (XDS) : 2017-21

• Can-Am Maverick X3 Turbo XRC : 2018-21

• Can-Am Maverick X3 Turbo XMR : 2018-21

• Can-Am Maverick X3 Turbo RR XDS : 2020-21

• Can-Am Maverick X3 MAX Turbo DS (standard) : 2017-21

• Can-Am Maverick X3 MAX Turbo R DS (XDS) : 2017-21

• Can-Am Maverick X3 MAX Turbo RR XDS : 2020-21
