HCR Suspension Yamaha YXZ Duner Long Travel Kit w/ Stock Shocks



Features:

• +4 inches wider per side; Additional 8 inches of track width
• +4 inches of wheel base added ; 2 front , 2 rear
• minimal weight increase of only 13 pounds on Elite kit while increasing strength exponentially.
• Fiber Laser Cut construction for precise fit and finish
• CNC'd 4130 heat treated billet mounting points for increased integrity
• Angled catacomb design for optimal force distribution
• RCV +4 extended axle bars. Heat Treated & through hardened
• Unique trailing arm inspired design for minimal added weight and increased strength.

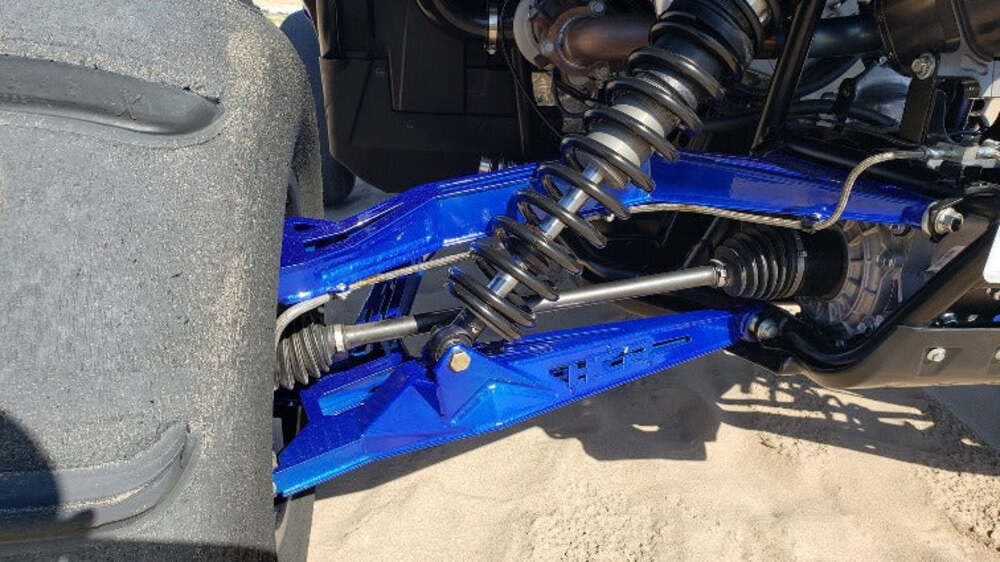

• High Clearance Boxed A-Arm Design
• Each piece is carefully tig welded for strength and aesthetics
• OEM ball joints are reused to maximize low speed steering, ease & smooth travel with less maintenance
• compatible with stock wheels
• High-Clearance Arms provide an increase of 1.25” in ground clearance
• 100% Bolt-on installation using factory mounting points
• Larger front tube mounts are 1.25” in diameter with Delrin bushings for increased strength and durability



Kit Includes:

• 4 Front A-arms
• 4 Rear Control arms

• 4 RCV Extended Axle Bars

• 1 Stock Series Shock Tower

• 1 set of tie rod extensions

• Hardware pack

• YXZ Installation guide



Fitment:

• Compatible with Yamaha YXZ
