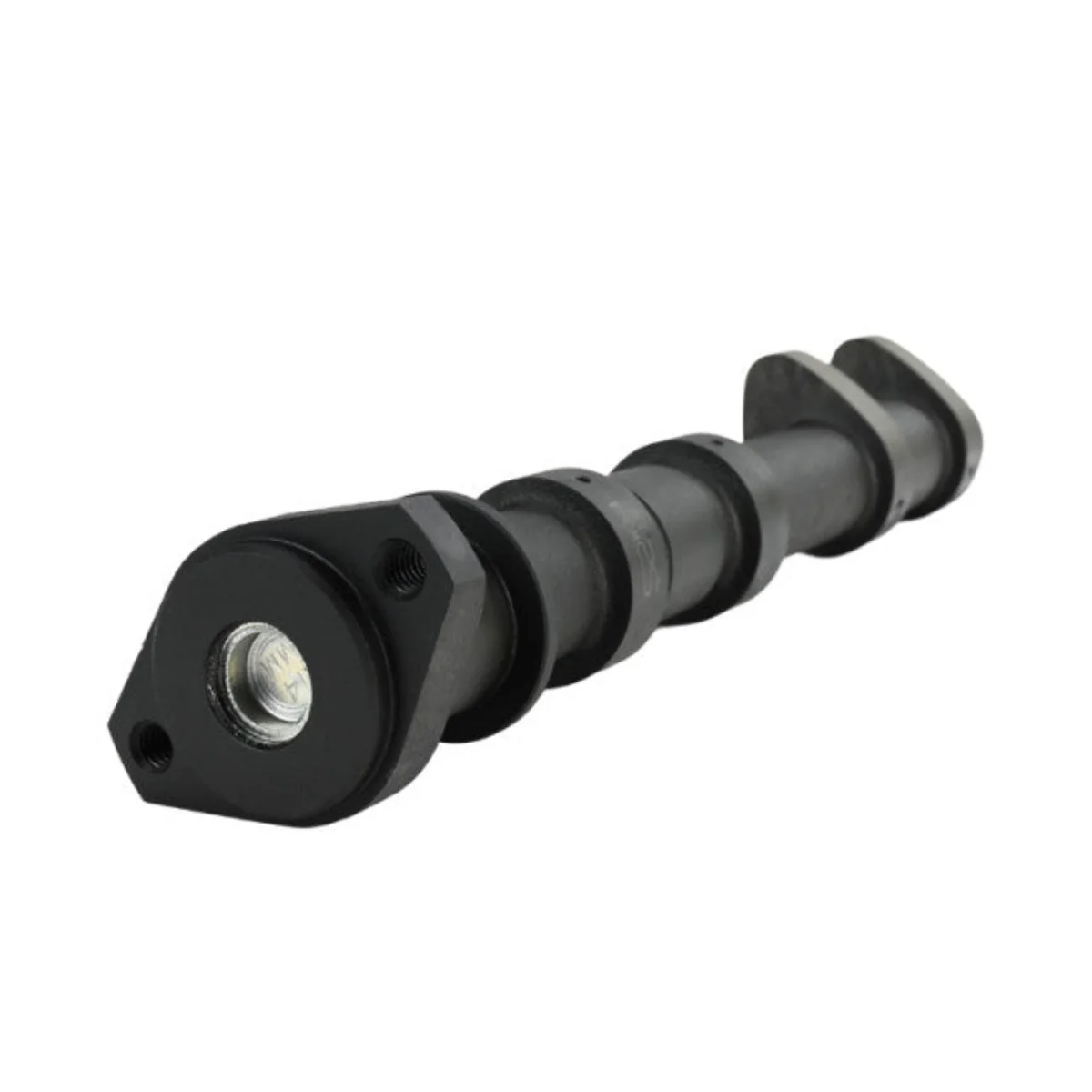

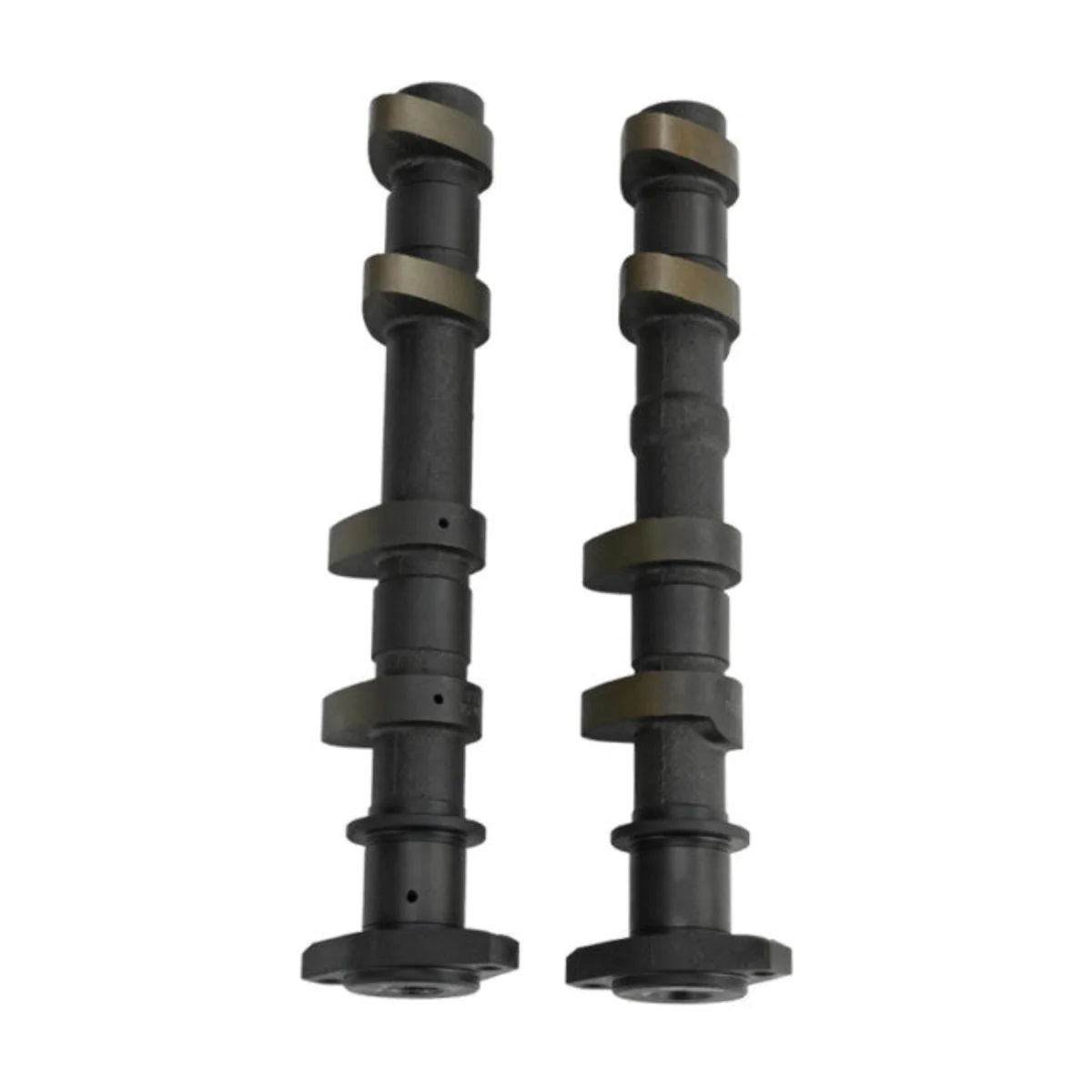

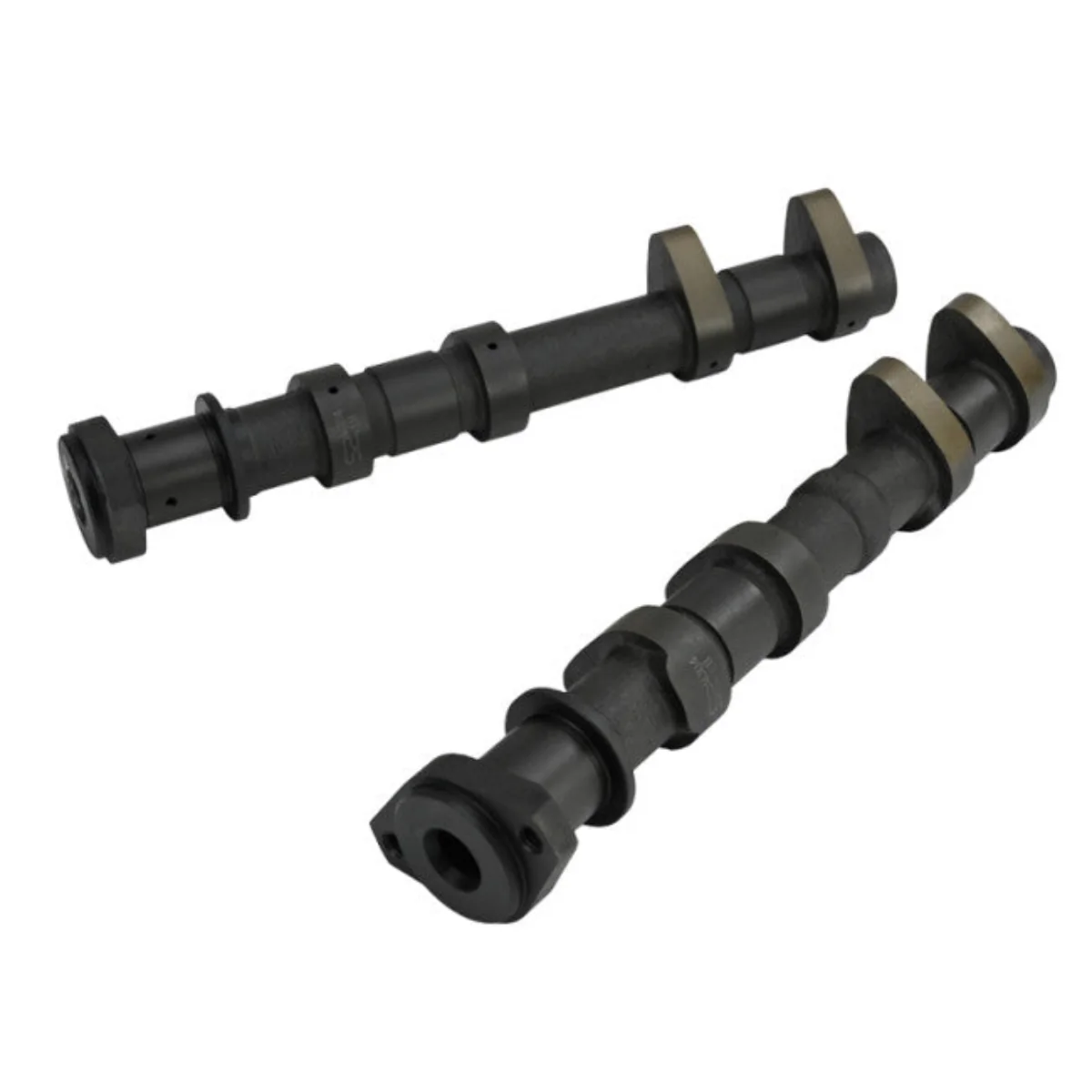

KraftWerks '20-'24 Kawasaki KRX Stage 1 Camshaft Set



Kraftwerks Off-Road Camshafts are developed in-house using computer aided design and simulation, and validated using dynotesting to produce industry leading results. Compared to OEM and other aftermarket performance camshaft manufacturers, Kraftwerks’ advanced cam profiles feature optimized opening and closing valve motions that result in greater dynamic compression and greater volumetric efficiency which translates into more horsepower and torque with better throttle response.



Specifications:

Intake:

• Lift: .423”
• Duration:
• 295˚ @ 0.1mm / 0.004"

• 251˚ @ 1mm / 0.0394"

• 243˚ @ 1.27mm / 0.050"

Exhaust:

• Lift: .412”
• Duration:
• 295˚ @ 0.1mm / 0.004"

• 246˚ @ 1mm / 0.0394"

• 239˚ @ 1.27mm / 0.050"
