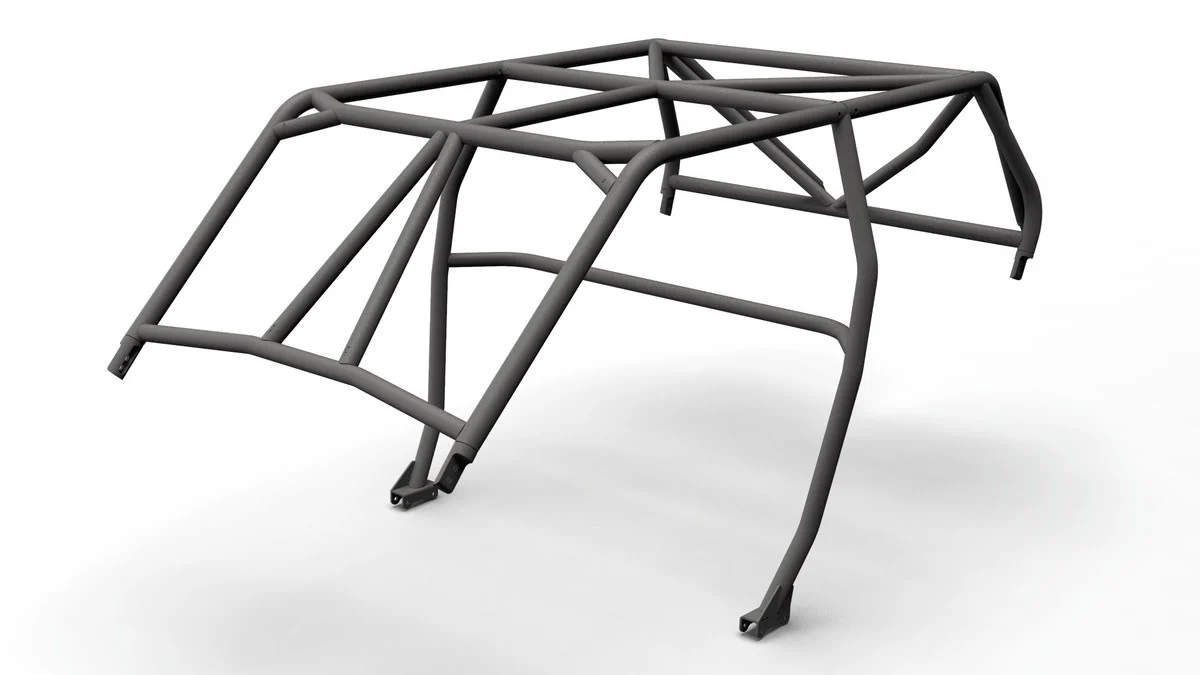

LSK '14+ Polaris RZR XP 4 Seat Flat Cage



Introducing The Weld It Yourself FLAT Cage Kit For Your 2014+ Polaris XP1000 4 Seater! This Cage Is Built With Both .120″ Wall & .095″ DOM Tubing That Can Be Either MIG Or TIG Welded Without The Use Of A Specialized Fixture – Just Install The Supplied Connectors To The Stock Cage Locations And Piece Together The Cage On The Vehicle.



Includes:

• 23 Laser Cut Tube Pieces With Laser Etched Part Numbers On Each Component

• 1.75″ OD .120 Wall DOM Tubing for Main Hoops

• 1.75″ OD For Main Structure Components & 1.50″ OD .095 Wall DOM Tubing For Windshield Cross Bars

• (2) A Pillar & (4) B or C Pillar Clamps To Attach To OEM Cage Location


Dimensions: 60 × 12 × 12 in



Requires:

• Welding – This Kit Can Be Welded Together Once Configured On The Vehicle




Upgrates:

• Aluminum Roof -.06 Thick 2 Piece Roof W/ Small Visor Bend & Bead Rolled Connection – Complete With Weld On Tabs And 1/4″ Grade 8 Hardware




Notes:

• This Cage Sits 19.25″ (48.89cm) Tall From Center of Top C Pillar Mounting Bolt To Highest Point On Cage

• Must Use A Floor Jack Under Center Of Vehicle During Installation To “Level Out” The Frame Rails – Failure To Do So Will Make Aligning The Cage At The Factory Locations Difficult
