Triple R Lighting Two-Lamp Harness Kit (Deutsch Dt - 4 PIN, 12V)



The ideal solution for wiring a pair of Lazer Carbon-6 (Gen3) / RP Hyperspot High Performance LED Driving Lights. The setup is quick, easy, and reliable with Deutsch DT06-4S connectors and no configuration procedures. The kit features a 12V relay, fuse, and battery terminal at one end, and 2.35m of flex on the lamp cable(s). The wiring kit allows for the operation of two lamps via an on/off switch which can be mounted inside your vehicle’s cockpit.



Compatiable with:

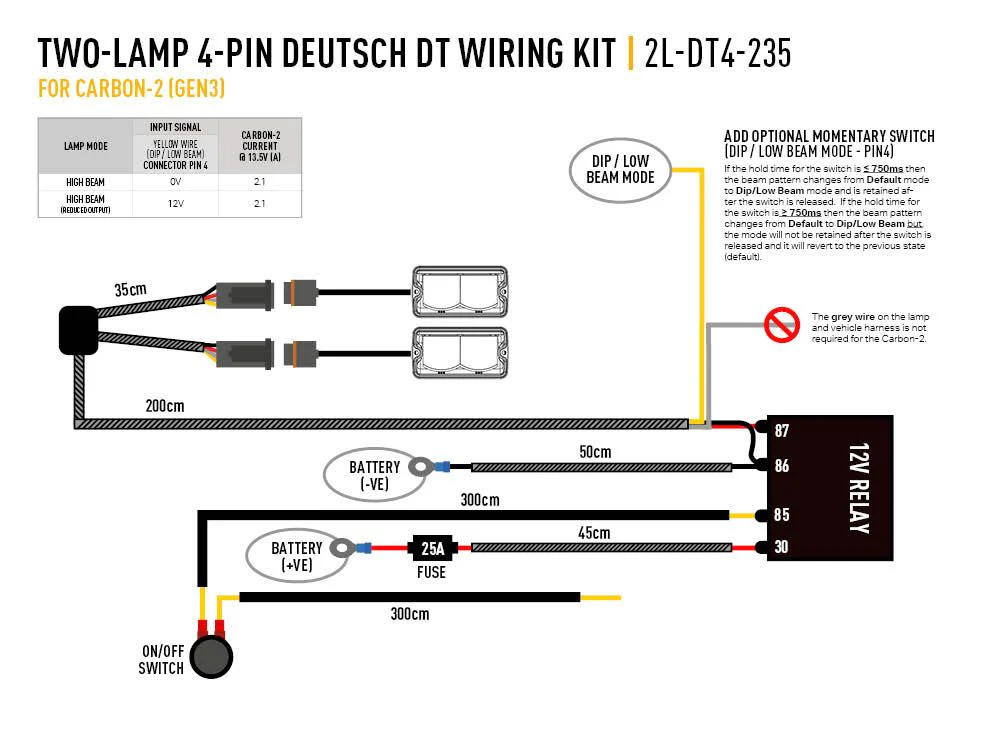

• Carbon-2 Drive (Gen3)

• Carbon-2 Spot (Gen3)

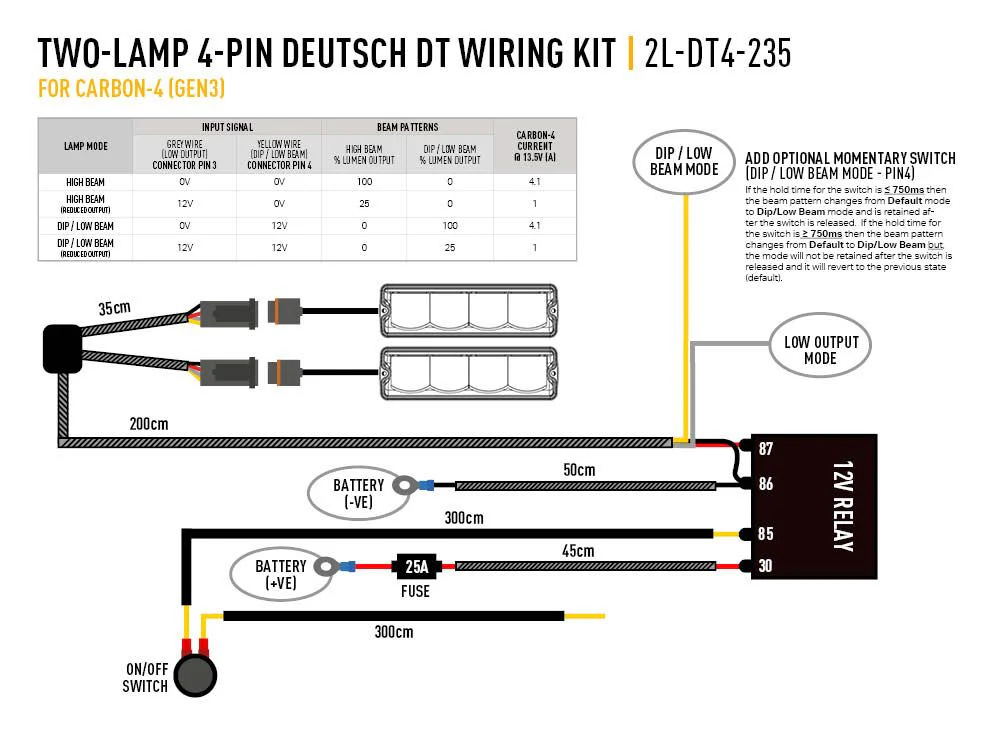

• Carbon-4 Drive (Gen3)

• Carbon-4 Spot (Gen3)

• Carbon-6 Drive (Gen3)

• Carbon-6 Spot (Gen3)

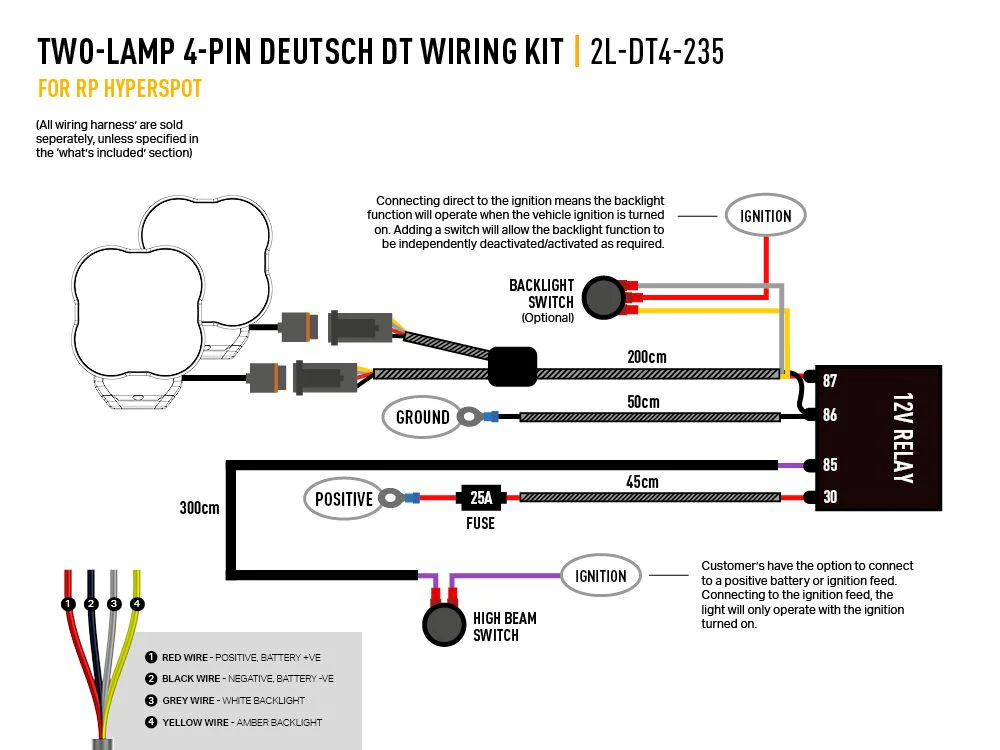

• RP Hyperspot



Features:

• Two-Lamp Wiring Kit for Triple-R Lights High Performance LED Lights (see product text for compatibility)
• 2m cable lengths
• Includes 12V relay and 25 amp fuse
• Relay holder approved to IP53 when mounted in a vertical (upright) orientation
• Deutsch DT06-4S connections
• Includes on/off switch for independent operation of lights
• Braided cable sections for added protection in engine bay



What's Included:

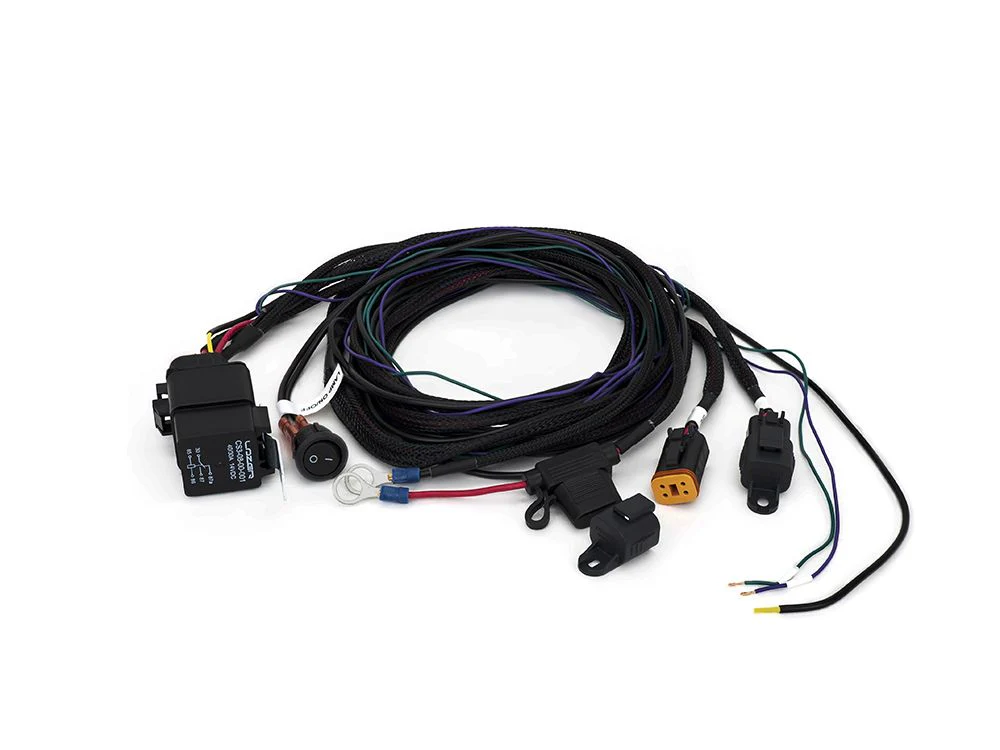

• x1 Two-Lamp Wiring Harness Kit (2L-DT4-235)




Instructions:

• UT50 Beacon Instructions (107.03 KB)
